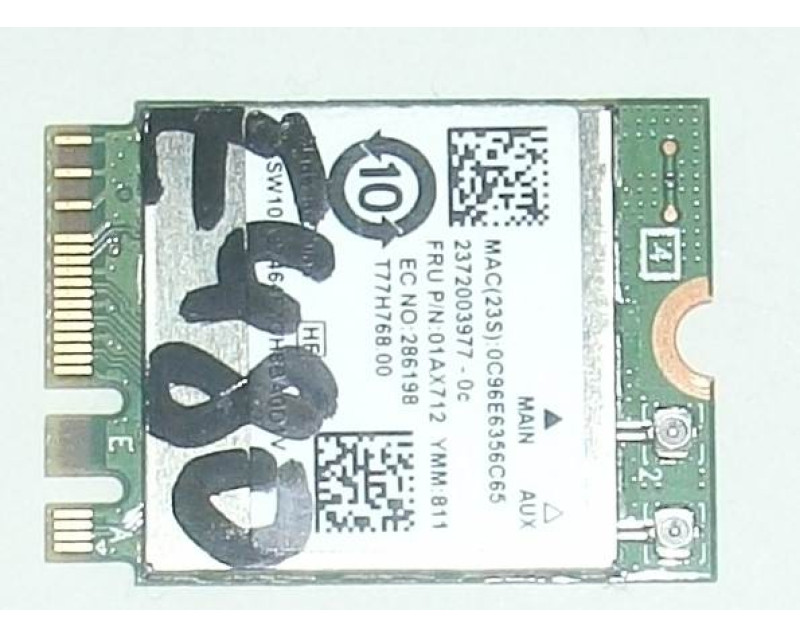

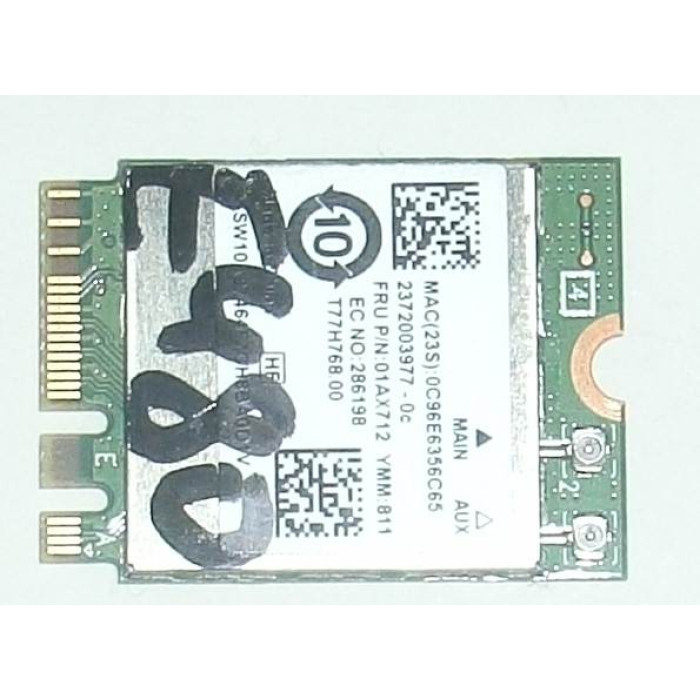

The Realtek RTL8822BE-CG is a highly integrated single-chip that supports 2-stream 802.11ac solutions with Multi-user MIMO (Multiple-Input, Multiple-Output) and Wireless LAN (WLAN) PCI Express network interface controller and integrated Bluetooth 2.1/3.0/4.2 USB interface controller. It combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip. The RTL8822BE-CG provides a complete solution for a high-performance integrated wireless and Bluetooth device.

    TFBGA 6.5x6.5mm package
    802.11 ac/abgn
    802.11ac 2x2, Wave-2 compatible with MU-MIMO
    Bluetooth 4.2 (Software only)

Host interface

    PCI Express 1.1 for WLAN controller
    USB2.0 for Bluetooth controller
