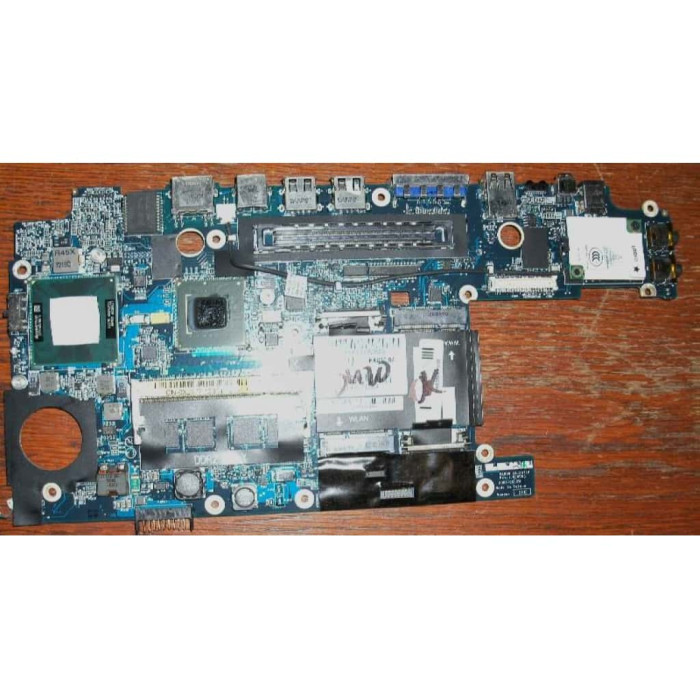

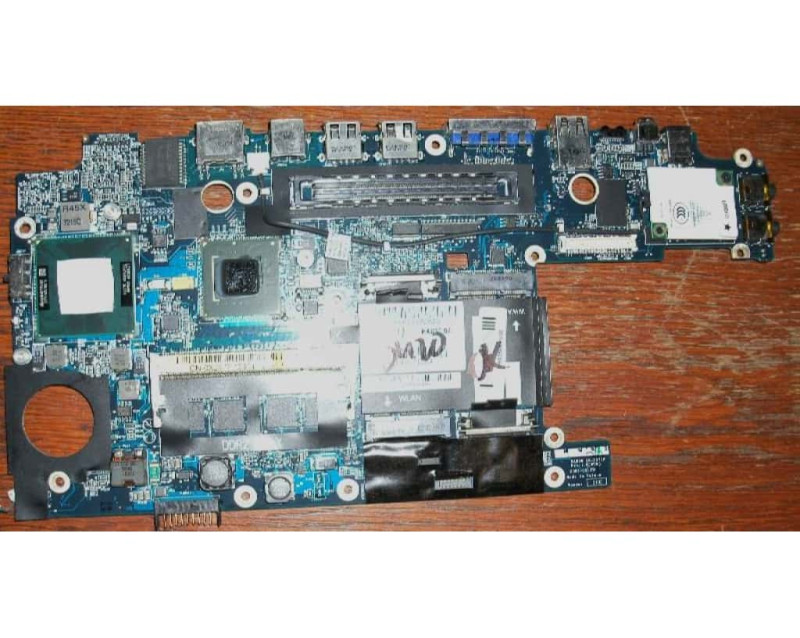

Дънна платка cn-0xj577-12961 за Dell Latitude D420 с вградени процесор Intel Core Duo U2500 и 512mb рам

Processor / Chipset

    CPU Intel Core Duo U2500 / 1.2 GHz
    Number of Cores Dual-Core
    Cache L2 cache - 2.0 MB
    Power Efficiency Ultra Low Voltage (ULV)
    Front Side Bus 533.0 MHz
    Chipset Mobile Intel 945GM Express
    Platform Technology Intel Centrino Duo
    Features Power-optimized processor system bus,
    Enhanced SpeedStep technology,
    Execute Disable Bit capability

Memory

    ( 512 MB (soldered) )
    Max RAM Supported 1.5 GB
    Technology DDR2 SDRAM
    Speed 533.0 MHz
    Form Factor SO DIMM 200-pin
    Slots Qty 1
    Empty Slots 0.0


Audio & Video

    Graphics Processor Intel GMA 900
    Memory Allocation Technology Dynamic Video Memory Technology 3.0
    Max Allocated RAM Size 224.0 MB
    Sound Speaker , Microphone
    Codec STAC9200
    Compliant Standards AC '97
    Audio Features High Definition Audio


Connections & Expansion

    Slots 1.0 x Smart Card ( 1.0 free ),
    1.0 x Memory ( 1.0 free ),
    1.0 x PC Card ( 0.0 free )
    Interfaces 2.0 x Display / video - VGA - RJ-11,
    1.0 x Network - Phone line - IrDA,
    1.0 x Microphone - Input - Mini-phone 3.5 mm,
    1.0 x Audio - Line-out/headphones - RJ-45,
    1.0 x Infrared - Ethernet 10Base-T/100Base-TX/1000Base-T - 4 pin FireWire,
    1.0 x Docking / port replicator - 15 pin HD D-Sub (HD-15),
    1.0 x Hi-Speed USB - 24 pin digital DVI,
    1.0 x Display / video - Mini-phone stereo 3.5 mm,
    1.0 x IEEE 1394 (FireWire) - 4 pin USB Type A,
    1.0 x PoweredUSB 2.0,
    1.0 x Modem
    Memory Card Reader Card reader ( SD Memory Card )
