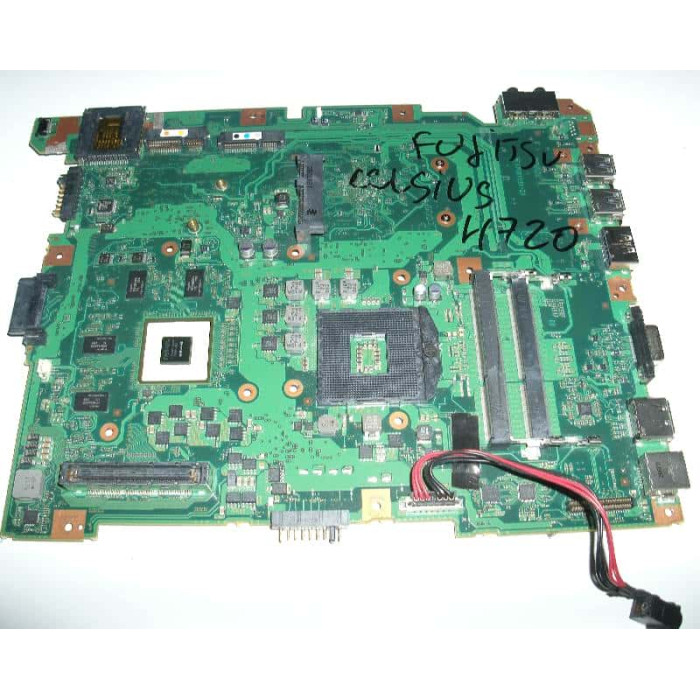

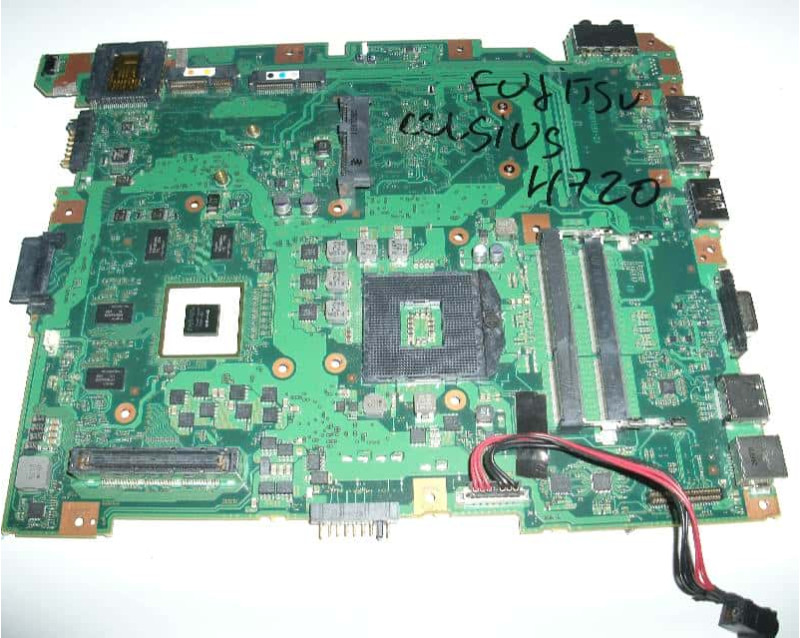

Дънна платка cp561531-z3 за Fujitsu Celsius H720

Processor / Chipset

    CPU
    Intel Core i3, i5, i7 (3rd Gen)
    Number of Cores
    Dual-Core
    64-bit Computing
    Yes
    Chipset Type
    Mobile Intel QM77 Express
    Features
    Hyper-Threading Technology, Intel Turbo Boost Technology 2.0, integrated memory controller

Memory

    Max Supported Size
    32 GB
    Technology
    DDR3 SDRAM
    Speed
    1600 MHz / PC3-12800 - 1600 MHz
    Form Factor
    SO-DIMM 204-pin
    Slots Qty
    2

Audio & Video

    Graphics Processor
    NVIDIA Quadro K1000M - 2048 MB, Core: 850 MHz, Memory: 900 MHz, DDR3, nvlddmkm 8.17.12.9679 (Forceware 296.79) Win7/64, Nvidia Optimus mit Intel HD Graphics 4000
    Integrated Webcam
    Yes
    Capture Resolutions
    1280 x 720
    Sound
    Stereo speakers, stereo microphone
    Audio Codec
    Realtek ALC269 @ Intel Panther Point PCH - High Definition Audio Controller

Connections & Expansion
1 PC-Card, 1 Express Card 34mm, 1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 VGA, 1 DisplayPort, 1 Kensington Lock, 1 eSata, 1 Docking Station Port, Audio Connections: separate in/out Klinke Anschlüsse, 2 digital array Mikrophone, Card Reader: SD (bis 2 GB), SDHC (bis 32 GB), SDXC (bis 64 GB), 1 SmartCard, 1 Fingerprint Reader, TPM 1.2

Networking
Intel 82579LM Gigabit Network Connection (10/100/1000/2500/5000MBit/s), Intel Centrino Advanced-N 6205 (a/b/g/n = Wi-Fi 4), Bluetooth 4.0 Broadcom BCM20702, Sierra Wireless
Optical drive
